Draft Problems in Old Charlotte Homes (Dilworth, Myers Park)
Preserving historic charm while solving chimney performance issues in Charlotte's oldest neighborhoods.
Charlotte's Historic Neighborhoods
Charlotte's most cherished neighborhoodsâDilworth (28203), Myers Park (28207), Elizabeth (28204), Plaza Midwood, and Cherryâcontain homes built from the 1900s through the 1940s. These historic treasures have fireplaces that were designed for a different era.
When these homes were built, fireplaces were the primary heat source. They were designed for burning coal or large amounts of wood, with no consideration for modern HVAC systems or airtight construction. Today, these fireplaces often struggle to draft properly in homes that have been renovated with modern energy efficiency in mind.
Unlined Flues: The Hidden Danger
Before 1940, most chimneys were built without clay tile linersâjust bare brick forming the flue. This creates two major problems:
Draft Issues
Rough, irregular brick surfaces create turbulence that slows smoke exit. Gaps between bricks allow cold air infiltration, cooling the flue gases and reducing buoyancy.
Safety Concerns
Without a liner, heat transfers directly through the brick to combustible materials. Gaps can allow dangerous carbon monoxide and creosote to enter the home's walls.
Important: NFPA codes now require flue liners for safe operation. If your historic home has an unlined chimney, it should be inspected and possibly relined before regular use.
The "Smoke Shelf" Design in Vintage Homes
Pre-war fireplaces feature a distinctive architectural element: the smoke shelf. This horizontal ledge sits directly behind the damper and was designed to catch downdrafts and redirect them up the chimney.
While clever in theory, smoke shelves create problems in practice:
- Debris accumulation: Leaves, nest materials, and fallen mortar collect on the shelf
- Creosote buildup: Smoke condenses on the cool shelf surface
- Blocked airflow: Accumulated material restricts smoke exit
- Difficult cleaning: The shelf is hard to access without special tools
We use specialized tools to thoroughly clean smoke shelves and can install smoke chamber modifications to improve flow in problem cases.
Shallow Fireboxes: The Smoke-Out Problem
Many historic Charlotte fireplaces have shallow fireboxesâonly 12-16 inches deep instead of the modern standard of 18-24 inches. These shallow boxes were designed for coal, which burns hot and clean, not wood.
When you burn wood in a shallow firebox:
- Logs extend too far forward, preventing the damper from capturing smoke
- Heat radiates directly at the opening instead of up the chimney
- Smoke "spills" into the room before it can be drawn up the flue
- The flue-to-firebox ratio is often incorrect

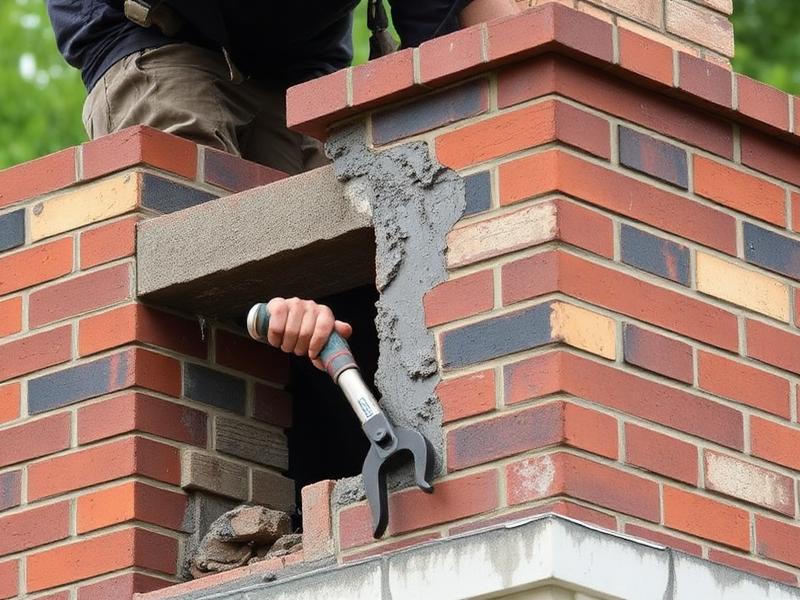

Restoration Solutions That Respect Historic Integrity
We specialize in fixing draft problems while preserving the historic character that makes your home special:
Minimally Invasive Options
- ⢠Smoke guard installation (reduces opening)
- ⢠Smoke chamber parging (smooths airflow)
- ⢠Top-sealing damper upgrade
- ⢠Outside air kit installation
Restoration Options
- ⢠Stainless steel relining
- ⢠HeatShield ceramic coating
- ⢠Historic mortar matching
- ⢠Period-appropriate repairs
Why Choose Us for Historic Chimney Work
We've worked extensively in Charlotte's historic neighborhoods and understand the unique challenges:
- Experience with Dilworth's Craftsman bungalows and their distinctive chimneys
- Knowledge of Myers Park's Tudor and Colonial Revival construction
- Familiarity with Plaza Midwood's eclectic mix of architectural styles
- Understanding of local historic district requirements
- Relationships with preservation specialists when needed
We'll never recommend tearing out original features when there's a preservation-friendly solution available.
Preserve Your Home's Historic Charm
Expert solutions for Charlotte's oldest and most beautiful homes.
